1. Frame Structure
- Frame: T800 full carbon fiber unibody frame, three-section folding structure (head tube fold + bottom bracket fold + seat tube fold), hollowed-out aerodynamic tubing to reduce wind resistance and improve rigidity.
- Fork: One-piece carbon fiber disc brake fork.
- Rear Triangle: Full carbon chainstays/straps, superior shock absorption compared to aluminum alloy frames.
- Folded Dimensions: 68×34×65cm, easily fits in car trunks, subways, and elevators.
- Original Net Weight: Approx. 8.6–9.2kg (slightly varies depending on drivetrain configuration); the 105 drop handlebar version shown in the picture weighs approximately 9.5kg.
- Maximum Load Capacity: 140kg
- Suitable Height: 155–190cm (with retractable carbon seatpost and adjustable head tube)
2. Wheelset and Tires (451 specification)
- Wheel diameter: 451 (20 inches x 1 1/8), offering better traction and cruising speed compared to 349 wheels, with pedaling efficiency approaching that of a 22-inch road bike.
**Ring Size:** - Original rim: Lightweight aluminum alloy disc brake rim, 28-hole straight-pull spokes; the vehicle in the picture has been upgraded with high-profile carbon wheels.
**Tires:** Original Schwalbe One 451 racing slick tires, low rolling resistance, wear-resistant and puncture-resistant (same as the vehicle in the picture).
**Brake Specifications:** - Center-lock disc, 160mm discs front and rear.
3. Drivetrain (Original/Modified Versions)

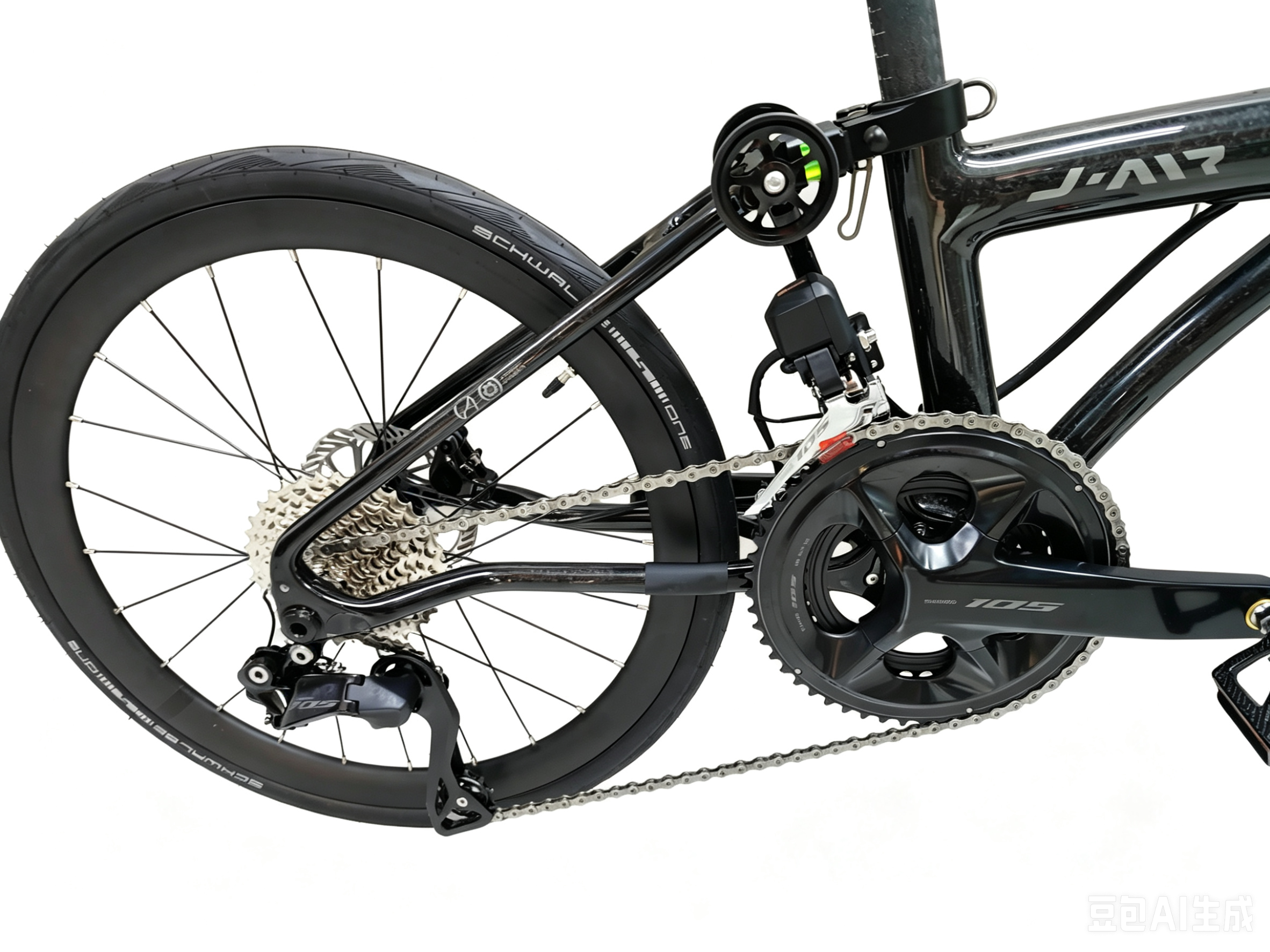

- Drivetrain: Shimano 105 R7120 12-speed hydraulic disc brake handlebars
- Chainset: 105 hollow integrated single chainset 52T
- Cassette: 11–34T wide gear ratio cassette, suitable for both climbing and high-speed cruising
- Chain: Shimano 105 rust-resistant chain
4. Braking System
All models come standard with hydraulic disc brakes, providing stable braking and smooth feel in the rain; only the entry-level aluminum frame NEO model comes with cable disc brakes, while the J-AIR carbon fiber frame model uniformly features hydraulic disc brakes.
5. Handling and Saddle Components

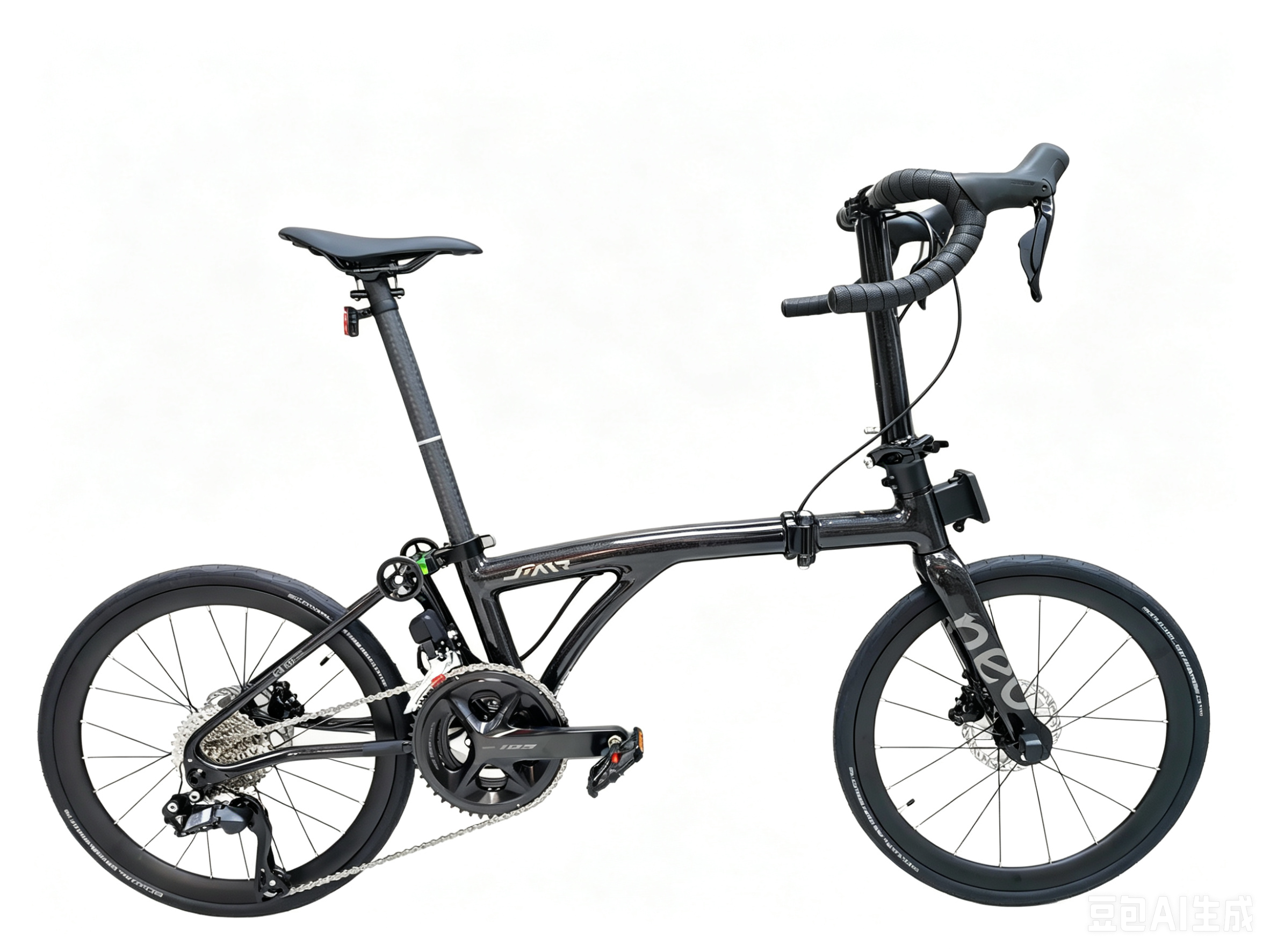

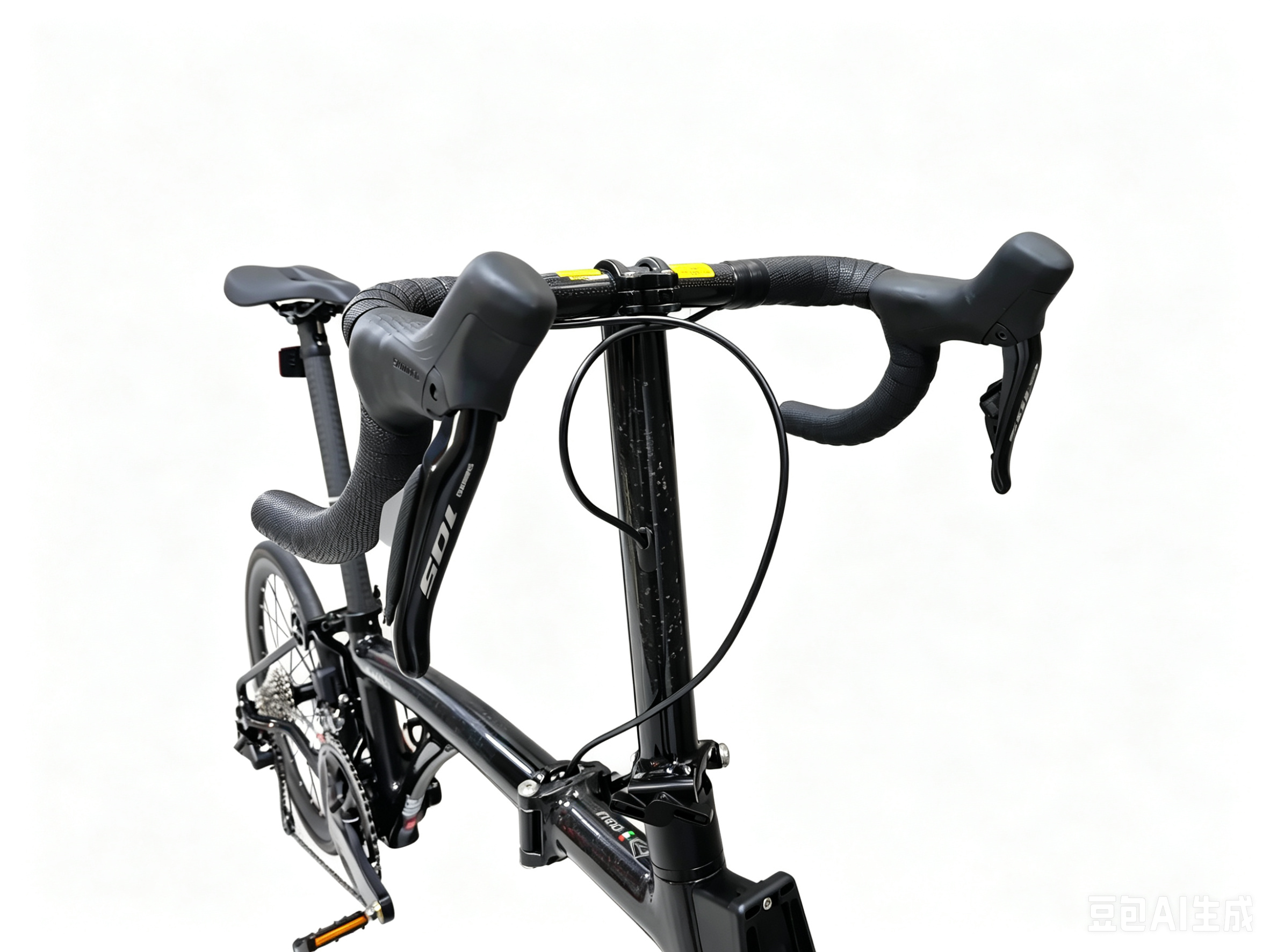

- Original Handlebars: Carbon fiber straight handlebars; modified road drop handlebars (pictured) maintain aerodynamic riding posture.
- Seatpost: 31.6mm full carbon fiber telescopic seatpost, long travel adjustment friendly to all heights.
- Saddle: Lightweight carbon fiber sports saddle.
- Folding Accessories: Original magnetic folding clips, auxiliary parking casters (green casters on the frame shown in the picture).
